WiBell Dry Contact Bell Controller
The WiBell Dry Contact Bell Controller is a programmable relay controller designed for facilities that already have bells installed. It replaces your old timer or controller — you keep your existing bells, wiring, and power source.

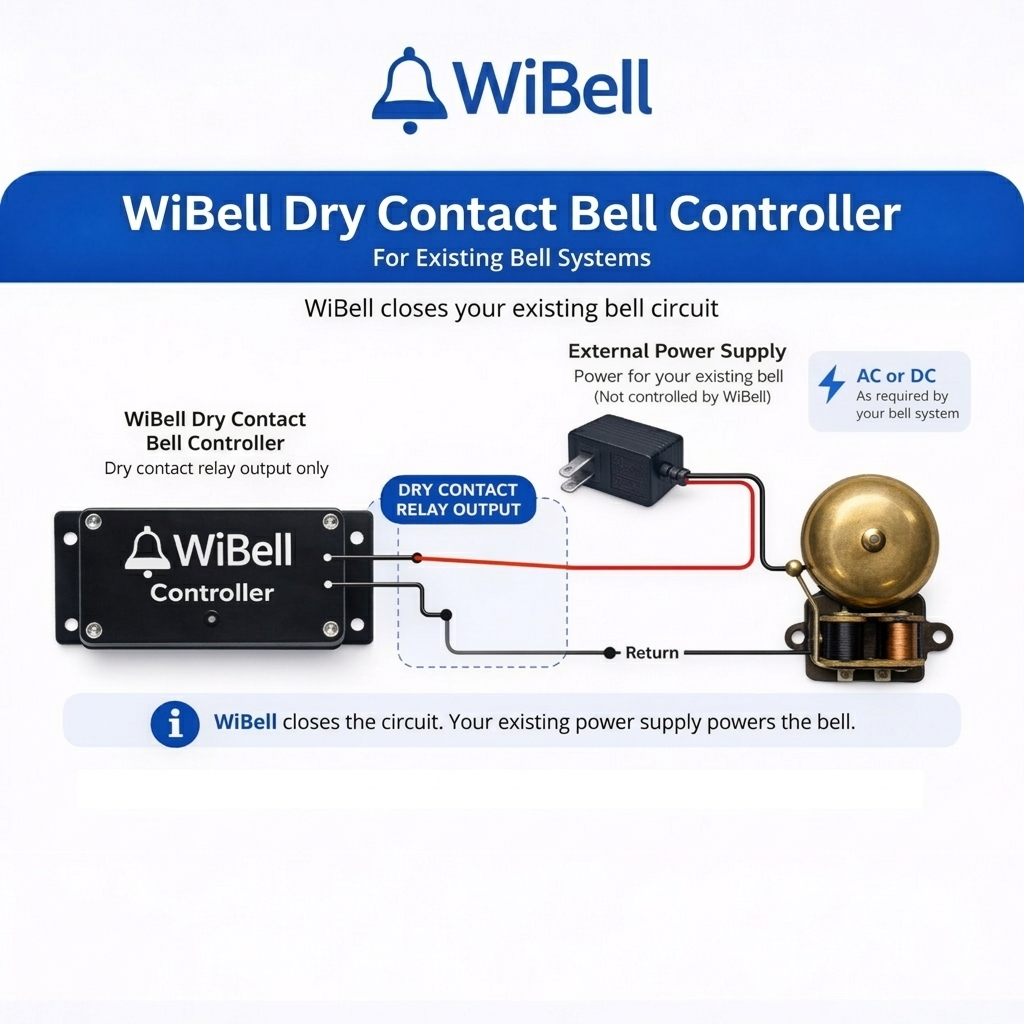

The controller does not supply power to the bell. It works by closing the bell circuit through a dry contact relay. When a scheduled event triggers, the relay closes and your existing bell rings using its own power source.
Setup and control are handled locally from a phone or computer using the built-in WiFi hotspot and web interface. No internet, no cloud, no subscription.
Key capabilities
How it works
Wire relay into your existing bell circuit
Plug in the 12V power adapter
Connect to WiBell WiFi from your phone
Open 192.168.4.1, sync time, set schedules
Supported bell voltages
The dry contact relay supports the following bell system voltages:
Specifications
| Power input | 12V DC adapter (included) |
| Output | Dry contact relay closure only |
| Relay rating | Up to 240 VAC / 30 VDC |
| Bell duration | 1–60 seconds (adjustable) |
| Schedules | Up to 500 events per week |
| Network | 2.4 GHz WiFi (optional — creates own hotspot) |
| Control interface | Any web browser (phone, tablet, or PC) |
| Setup address | 192.168.4.1 (via device hotspot) |
Ideal for
Schools with existing bell wiring
Replace the old mechanical timer without ripping out your wiring. Keep your bells, upgrade the controller.
Factories with hard-wired alarm systems
Add programmable scheduling to your existing break bells or alarm buzzers. Supports AC and DC systems up to 240V.
Facilities upgrading from manual or outdated timers
Replace analog clocks, mechanical switches, or broken digital timers with a modern web-based controller. No rewiring required.
What's included
Need a complete bell system instead?
If you don't have existing bells, the WiBell Programmable Bell ($249) includes the bell, controller, power adapter, and mounting hardware — everything in one box.
Documentation
Dry Contact Controller Manual (PDF)
Includes wiring diagrams, setup instructions, supported voltages, schedule configuration, and troubleshooting.
Full support page — setup video, step-by-step guide, and troubleshooting.
